QUESTION 1
In an AWS cloud, which feature provision WAN Edge routers automatically in Cisco SDWAN?
A. Cloud OnRamp
B. analytics
C. Cloud app
D. Network Designer
Correct Answer: A
QUESTION 2
Which scheduling method is configured by default for the eight queues in the cloud vEdge router?
A. weighted round-robin
B. priority queue
C. low latency queue
D. weighted random early detection
Correct Answer: A
Reference: https://sdwandocs.cisco.com/Product_Documentation/Software_Features/Release_18.1/06Policy_Basics/05Localized_Data_Policy/Configuring_Localized_Data_Policy_for_IPv4
QUESTION 3
Which attributes are configured to uniquely identify and represent a TLOC route?
A. system IP address, link color, and encapsulation
B. origin, originator, and preference
C. site ID, tag, and VPN
D. firewall, IPS, and application optimization
Correct Answer: A
TLOC routes are the logical tunnel termination points on the vEdge routers that connect into a transport network. A
TLOC route is uniquely identified and represented by a three-tuple, consisting of system IP address, link color, and
encapsulation (Generic Routing Encapsulation [GRE] or IPSec). In addition to a system IP address, color, and
encapsulation, TLOC routes also carry attributes such as TLOC private and public IP addresses, carrier, preference,
site ID, tag, and weight. For a TLOC to be considered in an active state on a particular vEdge, an active BFD session
must be associated with that vEdge TLOC.
https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/CVD-SD-WAN-Design-2018OCT.pdf
QUESTION 4

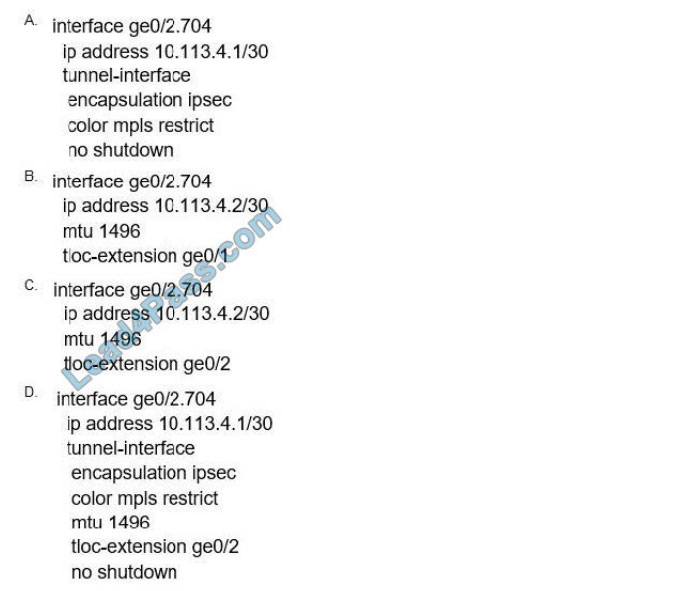

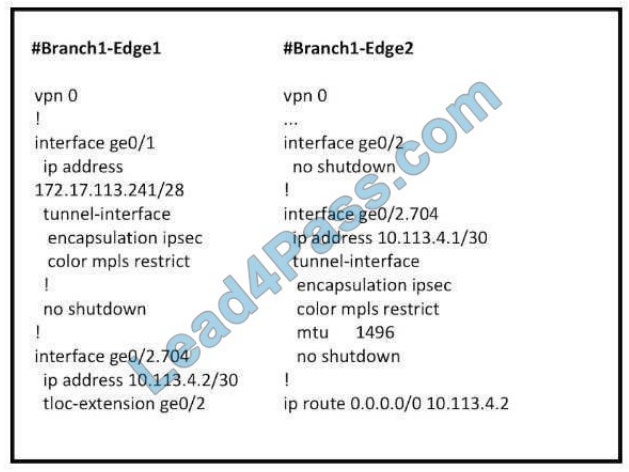

Refer to the exhibit.
Which configuration change is needed to configure the tloc-extention on Branch1-Edge1?
A. Option A
B. Option B
C. Option C
D. Option D
Correct Answer: D
QUESTION 5
Refer to the exhibit.
vEdge-2(config-vpn-0)#interface ge0/2.101 vEdge-2(config-interface)#ip address 10.1.100.0/24 vEdge-2(configinterface)#tloc-extension ge0/0 vEdge-2(config-interface)#mtu 1496 vEdge-2(config-interface)#no shutdown
What binding is created using the tloc-extension command?
A. between ge0/2.101 of port-type transport and ge0/0 of port-type service
B. between ge0/2.101 of port-type service and ge0/0 of port-type service
C. between ge0/2.101 of port-type service and ge0/0 of port-type transport
D. between ge0/2.101 of port-type transport and ge0/0 of port-type transport
Correct Answer: D
QUESTION 6
Which hardware component is involved in the Cisco SD-WAN authentication process for ISR platforms?
A. ZTP
B. OTPC
C. SUDI
D. TPMD
Correct Answer: C
QUESTION 7
In which VPN is the NAT operation on an outgoing interface configured for direct Internet access?
A. 0
B. 512
C. 10
D. 1
Correct Answer: A
Reference: https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/sdwan-dia-deploy-2019nov.pdf
QUESTION 8
Which protocol is used to measure loss, latency, jitter, and liveliness of the tunnel between WAN Edge router peers?
A. OMP
B. NetFlow
C. BFD
D. IP SLA
Correct Answer: C
Reference: https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2019/pdf/TECCRS-2014.pdf
QUESTION 9

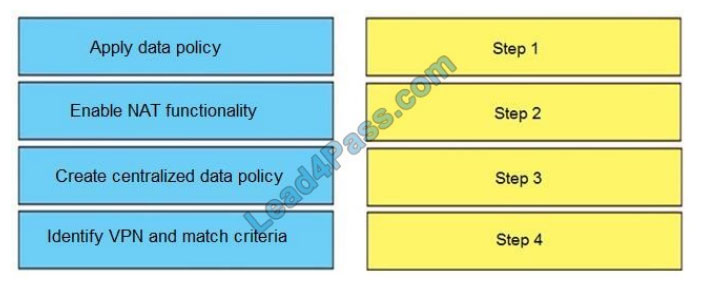

DRAG DROP
Drag and drop the actions from the left into the correct sequence on the right to create a data policy to direct traffic to
the Internet exit.
Select and Place:
Correct Answer:
QUESTION 10
Which two options are SD-WAN solution capabilities? (Choose two)
A. Ability to provide and integrate security with complementary products and applications
B. The separation of management plane, control plane, and data plane to enable horizontal scaling
C. Truck roll branch turn up for easy provisioning and new installations
D. Cloud hosted or on-premise fully redundant management and control plane functions
Correct Answer: BD
QUESTION 11
When software is upgraded on a vManage NMS, which two image-adding options store images in a local vManage
software repository? (Choose two.)
A. To be downloaded over an ICMP connection
B. To be downloaded over an SNMP connection
C. To be downloaded over a control plane connection
D. To be downloaded over an out-of-band connection
E. To be downloaded over an SMTP connection
Correct Answer: CD
Reference: https://sdwandocs.cisco.com/Product_Documentation/vManage_Help/Release_18.2/Maintenance/Software_Repository
QUESTION 12
Which Cisco SD-WAN component provides a secure data plane with remote vEdge routers?
A. vManage
B. vSmart
C. vBond
D. vEdge
Correct Answer: D
QUESTION 13
Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?
A. System Status
B. Troubleshooting
C. Real-Time
D. Events
Correct Answer: B
Reference: https://www.ciscolive.com/c/dam/r/ciscolive/apjc/docs/2018/pdf/LABEN-2010-LG.pdf
