Latest Cisco CCDP 300-115 Dumps Exam Questions And Answers (1-20)
QUESTION 1
Which statement about Layer 2 protocol participation of ports involved m a SPAN session is true?
A. Neither a SPAN source nor SPAN destination participates m any Layer 2 protocols.
B. A SPAN source does not participate n any Layer 2 protocols
C. A SPAN destination does not participate n any Layer 2 protocols
D. Both SPAN source and SPAN destination participate in any Layer 2 protocols
Correct Answer: C
QUESTION 2
Afterport security is deployed throughout an enterprise campus, the network team has been overwhelmed with port reset requests. They decide to configure the network to automate the process of re-enabling user ports.
Which command accomplishes this task?
A. switch(config)# errdisable recovery interval 180
B. switch(config)# errdisable recovery cause psecure-violation
C. switch(config)# switchport port-security protect
D. switch(config)# switchport port-security aging type inactivity
E. switch(config)# errdisablerecovery cause security-violation
Correct Answer: B
QUESTION 3
An EtherChannel bundle has been established between a Cisco switch and a corporate web server. The network administrator noticed that only one of the EtherChannel links is being utilized to reach the web server. What should be done on the Cisco switch to allow for better EtherChannel utilization to the corporate web server?
A. Enable Cisco Express Forwarding to allow for more effective traffic sharing over the EtherChannel bundle.
B. Adjust the EtherChannel load-balancing method based on destination IP addresses.
C. Disable spanning tree on all interfaces that are participating in the EtherChannel bundle.
D. Use link-state tracking to allow for improved load balancing of traffic upon link failure to the server.
E. Adjust the EtherChannel load-balancing method based on source IP addresses.
Correct Answer: E
QUESTION 4
Which three functions does Dynamic ARP Inspection perform with invalid IP-to MAC address bindings? 300-115 dumps (Choose there.)
A. accepts
B. deletes
C. discards
D. bypasses
E. intercepts
F. logs
Correct Answer: CEF
QUESTION 5

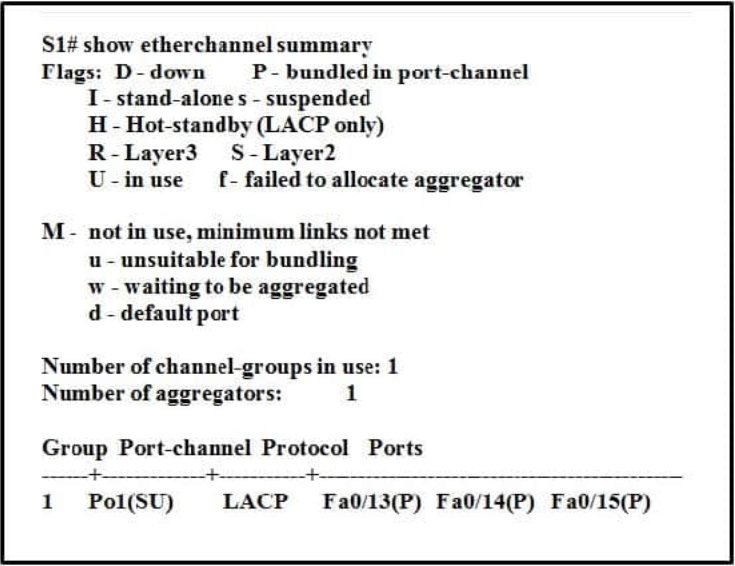

Refer to the exhibit.
Which statement about switch S1 is true?
A. Physical port Fa0/13, Fa0/14, and Fa0/15 successfully formed a Layer 2 port-channel interface using an open standard protocol.
B. Logical port Fa0/13, Fa0/14, and Fa0/15 successfully formed a Layer 2 physical port- channel interface using a Cisco proprietary protocol.
C. Physical port Fa0/13, Fa0/14, and Fa0/15 successfully formed a Layer 3 port-channel interface using a Cisco proprietary protocol.
D. Logical port Fa0/13, Fa0/14, and Fa0/15 successfully formed a Layer 3 physical port- channel interface using an open standard protocol.
Correct Answer: A
QUESTION 6
Whichfour LACP components are used to determine which hot-standby links become active after an interface failure within an EtherChannel bundle? (Choose four.)
A. LACP system priority
B. LACP port priority
C. interface MAC address
D. system ID
E. port number
F. hot-standby link identification number
G. interface bandwidth
Correct Answer: ABDE
QUESTION 7
What percentage of bandwidth is reduced when a stack cable is broken?
A. 0
B. 25
C. 50
D. 75
E. 100
Correct Answer: C
QUESTION 8

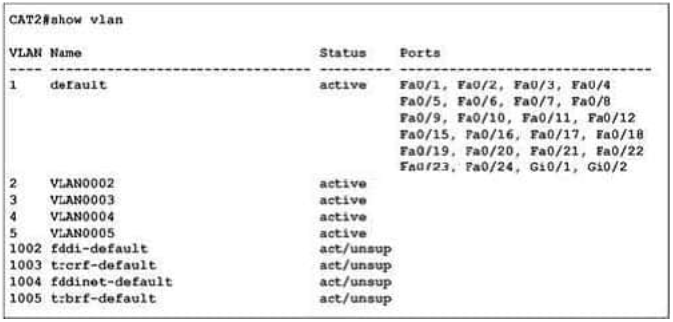

Refer to the exhibit. Based upon the output of show vlan on switch CAT2, what can we conclude about interfaces Fa0/13 and Fa0/14?
A. That interfaces Fa0/13 andFa0/14 are in VLAN 1
B. That interfaces Fa0/13 and Fa0/14 are down
C. That interfaces Fa0/13 and Fa0/14 are trunk interfaces
D. That interfaces Fa0/13 and Fa0/14 have a domain mismatch with another switch
E. That interfaces Fa0/13 and Fa0/14 have a duplexmismatch with another switch
Correct Answer: C
QUESTION 9
RSPAN has been configured on a Cisco Catalyst switch; however, traffic is not being replicated to the remote switch.
Which type of misconfiguration is a cause?
A. The RSPAN designated VLAN is missing the remote span command.
B. The local and remote RSPAN switches are configured using different session IDs.
C. The local RSPAN switch is replicating only Rx traffic to the remote switch.
D. The local switch isoverloaded with the amount of sourced traffic that must be replicated to the remote switch.
Correct Answer: A
QUESTION 10
Which command globally enables AAA on a device?
A. aaa new-model
B. aaa authentication
C. aaa authorization
D. aaa accounting
Correct Answer: A
QUESTION 11
Routers R1 and R2 are configured for HSRP as shown below:
Router R1: interface ethernet 0 ip address 20.6.2.1 255.255.255.0 standby 35 ip 20.6.2.21 standby 35 priority 100 interface ethernet 1 ip address 20.6.1.1.2 255.255.255.0 standby 34 ip 20.6.1.21 Router R2: interface ethernet 0 ip address 20.6.2.2 255.255.255.0 standby 35 ip 20.6.2.21 interface ethernet 1 ip address 20.6.1.1.1 255.255.255.0 standby 34 ip 20.6.1.21 standby 34 priority 100 You have configured the routers R1 andamp;R2 with HSRP. 300-115 dumps While debugging router R2 you notice very frequent HSRP group state transitions. What is the most likely cause of this?
A. physical layer issues
B. no spanning tree loops
C. use of non-default HSRP timers
D. failure to set the command standby 35 preempt
Correct Answer: A
QUESTION 12

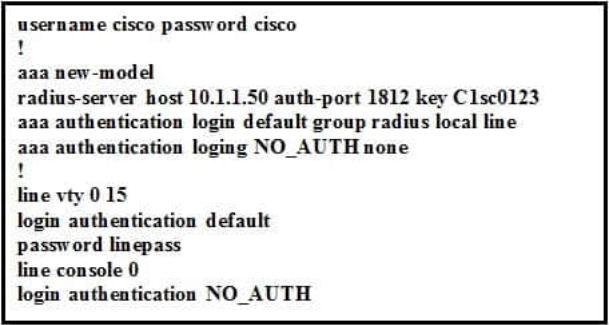

Refer to the exhibit.
When a network administrator is attempting an SSH connection to the device, in which order does the device check the login credentials?
A. RADIUS server, localusername, line password
B. RADIUS server, line password, local username
C. Line password, local username, RADIUS server
D. Line password, RADIUS server, local username
Correct Answer: A
QUESTION 13
A switch is added into the production network to increase port capacity. A network engineer is configuring the switch for DHCP snooping and IP Source Guard, but is unable to configure ip verify source under several of the interfaces.
Which option is the cause of the problem?
A. The local DHCP server is disabled prior to enabling IP Source Guard.
B. The interfaces are configured as Layer 3 using the no switchport command.
C. No VLANs exist on the switch and/or the switch is configured in VTP transparent mode.
D. The switch is configured for sdm prefer routing as the switched database management template.
E. The configured SVIs on the switch have been removed for the associated interfaces.
Correct Answer: B
QUESTION 14
Which command correctly configures standby tracking for group 1 using the default decrement priority value?
A. standby 1 track 100
B. standby 1 track 100 decrement 1
C. standby 1 track 100 decrement 5
D. standby 1 track 100 decrement 20
Correct Answer: A
QUESTION 15
When using EtherChannel misconfiguration guard, which technology is used to prevent this type of misconfiguration from affecting the network?
A. STP
B. port security
C. LACP
D. PAgP
Correct Answer: A
QUESTION 16
What happens if you apply this command andquot;vlan dot1q tag nativeandquot;?
A. packet will be dropped
B. packet go to defautl vlan
C. packet go to native vlan
Correct Answer: A
QUESTION 17

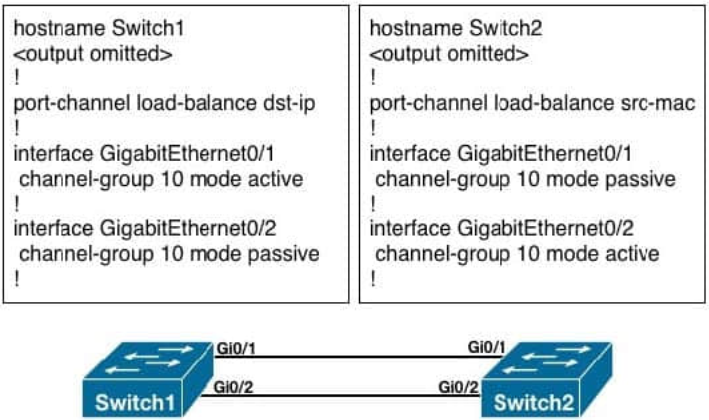

Refer to the exhibit.
What is the result of the configuration?
A. The EtherChannels would not form because the load-balancing method must match on the devices.
B. The EtherChannels would form and function properly eventhough the load-balancing and EtherChannel modes do not match.
C. The EtherChannels would form, but network loops would occur because the load-balancing methods do not match.
D. The EtherChannels would form and both devices would use the dst-ip load-balancing method because Switch1 is configured with EtherChannel mode active.
Correct Answer: B
QUESTION 18
A network engineer changed the port speed and duplex setting of an existing EtherChannel bundle that uses the PAgP protocol. 300-115 dumps Which statement describes what happens to all ports in the bundle?
A. PAgP changes the port speed and duplex for all ports in the bundle.
B. PAgP drops the ports that do not match the configuration.
C. PAgP does not change the port speed and duplex for all ports in the bundle until the switch is rebooted.
D. PAgP changes the port speed but notthe duplex for all ports in the bundle.
Correct Answer: A
QUESTION 19
Which two statements about SPAN source and destination ports during an active session are true? (Choose two.)
A. The source port can be only an Ethernet physical port.
B. The source port can be monitored in multiple SPAN sessions.
C. Thedestination port can be destination in multiple SPAN sessions.
D. The destination port does not participate in STP.
E. You can mix individual source ports and source VLANs within a single session.
Correct Answer: BD
QUESTION 20
A Cisco Catalyst switch that is prone to reboots continues to rebuild the DHCP snooping database. What is the solution to avoid the snooping database from being rebuilt after everydevice reboot?
A. A DHCP snooping database agent should be configured.
B. Enable DHCP snooping for all VLANs that are associated with the switch.
C. Disable Option 82 for DHCP data insertion.
D. Use IP Source Guard to protect the DHCP binding table entries from being lost upon rebooting.
E. Apply ip dhcp snooping trust on all interfaces with dynamic addresses.
Correct Answer: A
