[MAR 2021] Cisco 200-301 exam dumps and online practice questions are available from Lead4Pass

The latest updated Cisco 200-301 exam dumps and free 200-301 exam practice questions and answers! Latest updates from leads4pass Cisco 200-301 Dumps PDF and 200-301 Dumps VCE, leads4pass 200-301 exam questions updated and answers corrected!
Get the full Cisco 200-301 dumps from https://www.leads4pass.com/200-301.html (VCE&PDF)

Latest 200-301 PDF for free

Share the Cisco 200-301 Dumps PDF for free From leads4pass 200-301 Dumps part of the distraction collected on Google Drive shared by leads4pass
https://drive.google.com/file/d/195PHMVOk8u9R8kQ7xwsSSP656j0ST9SL/

The latest updated Cisco 200-301 Exam Practice Questions and Answers Online Practice Test is free to share from leads4pass (Q1-Q13)

QUESTION 1
Which type of attack is mitigated by dynamic ARP inspection?
A. DDoS
B. malware
C. man-in-the-middle
D. worm
Correct Answer: C

QUESTION 2
Router A learns the same route from two different neighbors; one of the neighbor routers is an OSPF neighbor, and the
other is an EIGRP neighbor. What is the administrative distance of the route that will be installed in the routing table?
A. 20
B. 90
C. 110
D. 115
Correct Answer: B
The Administrative Distance (AD) of EIGRP is 90 while the AD of OSPF is 110 so the EIGRP route will be chosen to install
into the routing table.

QUESTION 3
Which three statements are typical characteristics of VLAN arrangements? (Choose three.)
A. A new switch has no VLANs configured.
B. Connectivity between VLANs requires a Layer 3 device.
C. VLANs typically decrease the number of collision domains.
D. Each VLAN uses a separate address space.
E. A switch maintains a separate bridging table for each VLAN.
F. VLANs cannot span multiple switches.
Correct Answer: BDE

QUESTION 4
Which statement about Link Aggregation when implementing on a Cisco Wireless LAN Controller is true?
A. The EtherChannel must be configured in “mode active”.
B. When enabled, the WLC bandwidth drops to 500 Mbps.
C. To pass client traffic, two or more ports must be configured.
D. One functional physical port is needed to pass client traffic.
Correct Answer: D
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-2/configguide/b_cg82/b_cg82_chapter_010101011.html

QUESTION 5
Which protocol prompts the Wireless LAN Controller to generate its own local web administration SSL certificate for GUI
access?
A. HTTPS
B. RADIUS
C. TACACS+
D. HTTP
Correct Answer: A

QUESTION 6
A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded. Which command must be configured to increment the security-violation count and forward an SNMP trap?
A. switchport port-security vilation access
B. switchport port-security vilation protect
C. switchport port-security vilation restrict
D. switchport port-security vilation shutdown
Correct Answer: C
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/port_sec.html

QUESTION 7
Which technology must be implemented to configure network device monitoring with the highest security?
A. IP SLA
B. Syslog
C. NetFlow
D. SNMPv3
Correct Answer: C

QUESTION 8
When a WPA2-PSK WLAN is configured in the Wireless LAN Controller, what is the minimum number of characters that
is required in the ASCII formar?
A. 6
B. 8
C. 12
D. 18
Correct Answer: B

QUESTION 9
Refer to the exhibit.

[2021.3]leads4pass 200-301 practice test q9

Which type of configuration is represented in the output?
A. Ansible
B. JSON
C. Chef
D. Puppet
Correct Answer: B

QUESTION 10
Which two pieces of information can you learn by viewing the routing table? (Choose two.)
A. whether an ACL was applied inbound or outbound to an interface
B. the EIGRP or BGP autonomous system
C. whether the administrative distance was manually or dynamically configured
D. which neighbor adjacencies are established
E. the length of time that a route has been known
Correct Answer: CE

QUESTION 11
Drag and drop the WLAN components from the left onto the correct descriptions on the right.
Select and Place:[2021.3]leads4pass 200-301 practice test q11

Correct Answer:

[2021.3]leads4pass 200-301 practice test q11-1

The service port can be used for management purposes, primarily for out-of-band management. However, AP
management traffic is not possible across the service port. In most cases, the service port is used as a “last resort”
means of accessing the controller GUI for management purposes. For example, in the case where the system
distribution ports on the controller are down or their communication to the wired network is otherwise degraded.
A dynamic interface with the Dynamic AP Management option enabled is used as the tunnel source for packets from the
controller to the access point and as the destination for CAPWAP packets from the access point to the controller. The
virtual interface is used to support mobility management, Dynamic Host Configuration Protocol (DHCP) relay, and
embedded Layer 3 security such as guest web authentication. It also maintains the DNS gateway hostname used by
Layer 3 security and mobility managers to verify the source of certificates when Layer 3 web authorization is enabled.
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-5/configguide/b_cg85/ports_and_interfaces.html

QUESTION 12
DRAG DROP

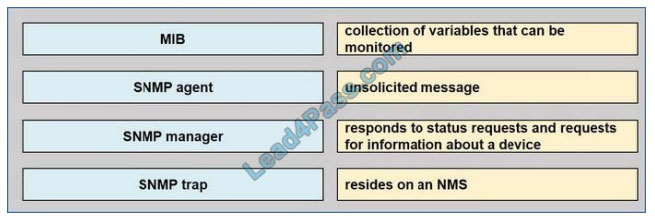

Drag and drop the SNMP components from the left onto the descriptions on the right.
Select and Place:[2021.3]leads4pass 200-301 practice test q12

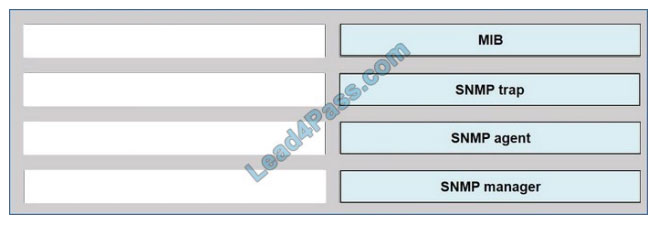

Correct Answer:

[2021.3]leads4pass 200-301 practice test q12-1

QUESTION 13[2021.3]leads4pass 200-301 practice test q13

Refer to the exhibit. The loopback1 interface of the Atlanta router must reach the loopback3 interface of the Washington
router. Which two static host routes must be configured on the New York router? (Choose two.)
A. ipv6 route 2000::1/128 2012::1
B. ipv6 route 2000::3/128 2023::3
C. ipv6 route 2000::3/128 s0/0/0
D. ipv6 route 2000::1/128 2012::2
E. ipv6 route 2000::1/128 s0/0/1
Correct Answer: AB
